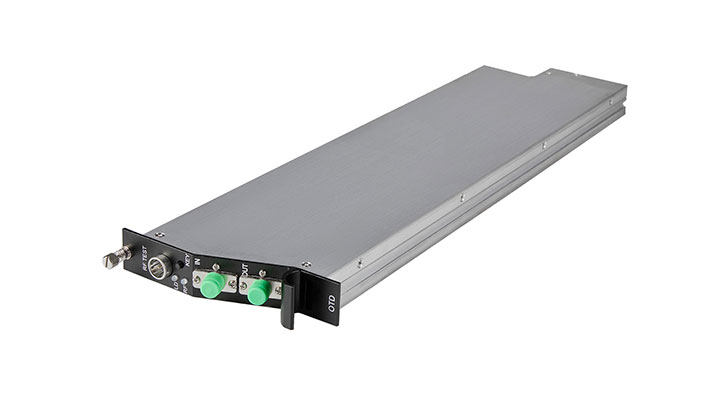

1550nm Erbium-Doped Fiber Amplifier Module

Main Applications

1.FTTH、FTTx PON、Triple-play

2. IP/QAM data business

3.Network upgrading and capacity expansion based on existing optical fiber resource.




  TOS2000TEA series EDFA module,its core components adopt the world's top brand pump laser and erbium-doped fiber. The optimized optical design and production process ensure the best optical performance. The perfect electronic controlled modes of APC (automatic power control), ACC (automatic current control) and ATC (automatic temperature control) circuits are adopted to ensure high stability and reliability of the output power, at the same time, it also guarantees excellent optical path index.

  The product has the characteristics of small size and compact structure, and can be used with TOS2000TEL power supply and TOS2000TJK optical platform to form an optical transmission system with excellent performance.


1. It adopts the world's top brand pump laser and erbium-doped fiber.

2. Perfect APC, ACC and ATC optical circuit design ensure low noise, high output and high reliability of the device in the whole operating band (1530 ~ 1563nm).

3. It has the function of automatic protection of low input or no input. When the input optical power is lower than the set value, the laser will automatically shut down to protect the operating safety of the device.

4. Output adjustable, max reduced to 10dBm.

5. Max output reaches 27dBm

6.With RF detection port to monitor RF signal parameters (not standard configuration, can be added according to customer’s  requirement).

7.The built-in microprocessor monitors all the operating status parameters of pump laser and transmits them to the platform through the bus. The platform can monitor and display its operating status through LCD screen. The intelligent function of the platform provides a good internal operating environment for the module, so that the excellence of the module can be brought into play, with high reliability and stability.
