Indoor Optical Receiver

Main Applications

1.Secondary head-end

2.Network upgrading and capacity expansion based on existing optical fiber resource.


  TOR4100 indoor optical receiver adopts high performance and high efficiency O/E converter, the first stage is amplified full GaAs MMIC , and the second stage by  gain GaAS power doubler module , which ensure high output level. The whole device is controlled by microcomputer, AGC, ATT and EQ are adjusted by numerical control, which is the best choice for the construction of ring network in large and medium-sized cities.

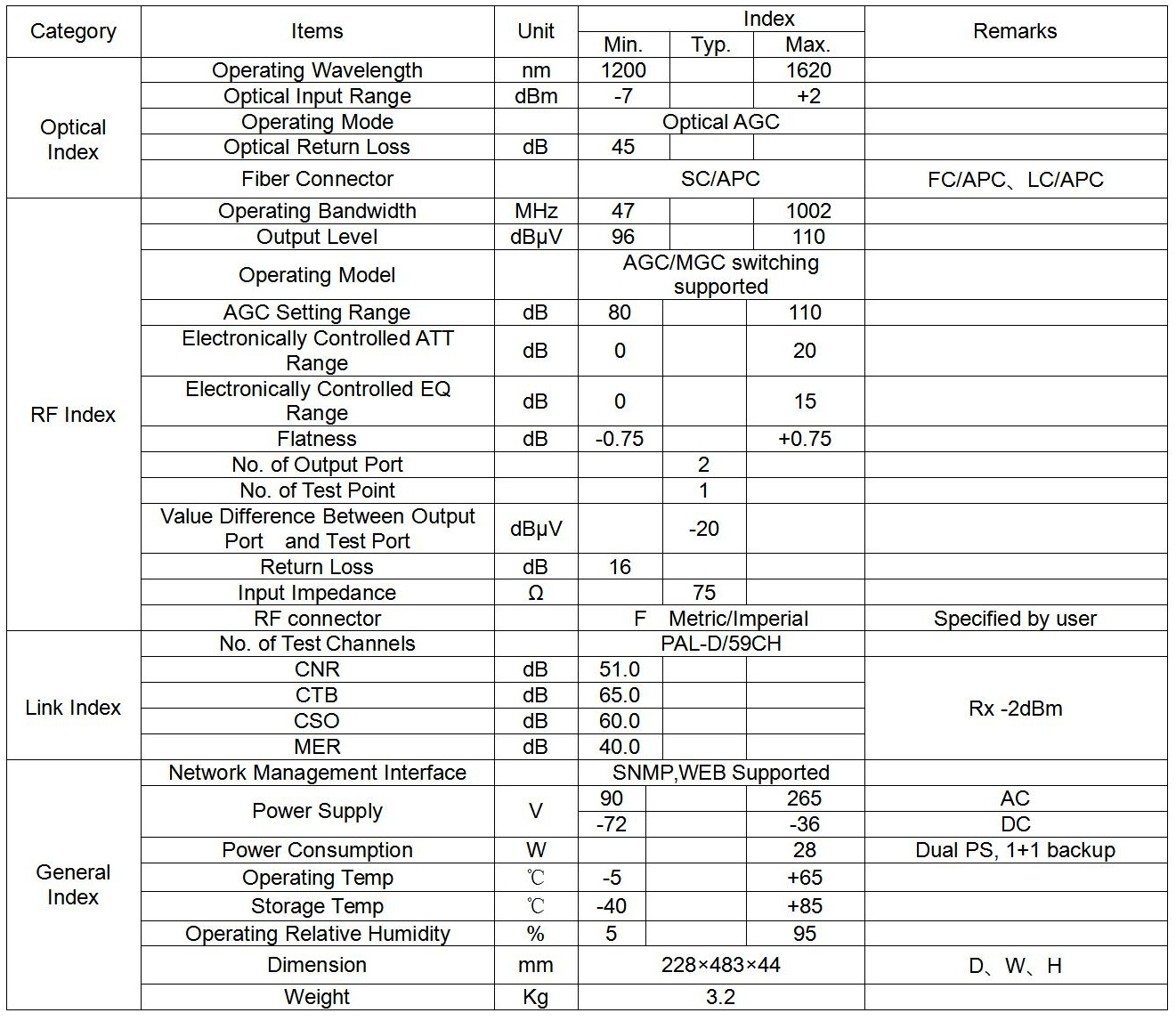

1.It adopts high performance photo-detector, operating wavelength 1200 ~ 1620nm.

2.Optical AGC control, when input is within range -7~+2dBm, the output level remains unchanged and CTB, COS is measured up to the standard.

3. High gain, low distortion.

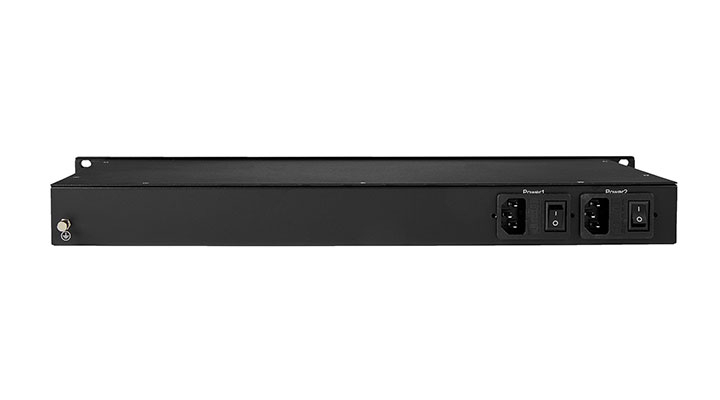

4.Built -in dual power supply, automatically switched and hot plug in/out supported.

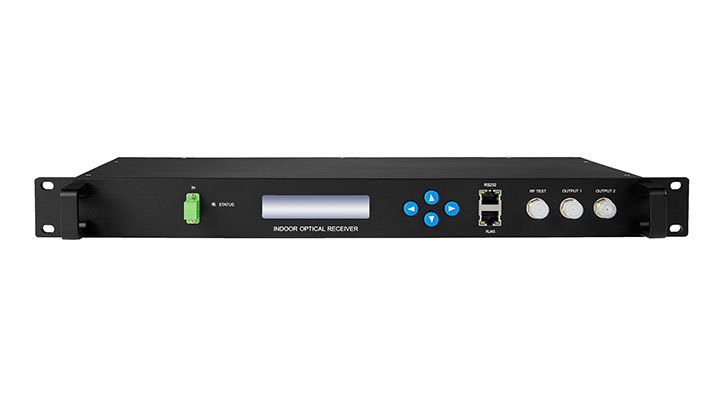

5.The operating parameters of the whole machine are controlled by  microprocessor, and the LCD status display on the front panel has many functions such as laser status monitoring, parameter display, fault alarm, network management, etc.; once the operating parameters of the laser deviate from the allowed range set by the software, the system will alarm promptly.

6.Standard RJ45 interface is provided, supporting SNMP and WEB remote network management.
