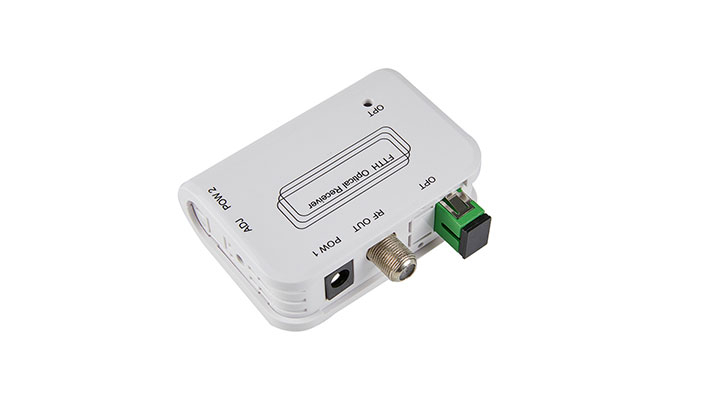

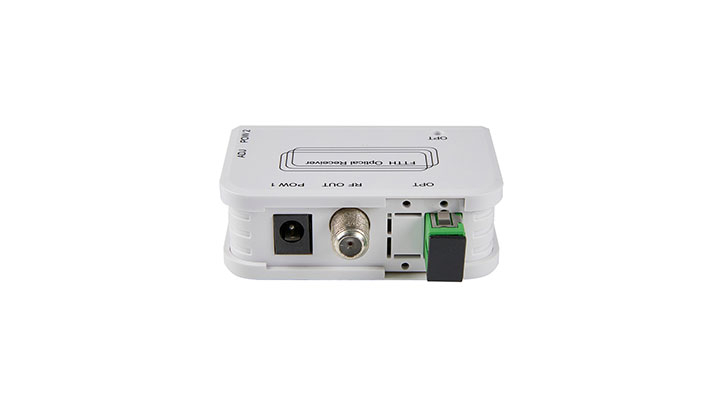

FTTH Low Input Optical Receiver


Main Applications

1、FTTH

2、FTTH PON

3、Triple-play



  TOR1100 FTTH optical receiver adopts high-performance and high sensitivity O/E converter, and low-noise GaAs amplifier part  is used in the first and second stages. It has excellent performance in the high dynamic optical power receiving range of - 20dbm to + 2dbm. It is a low power consumption , low-cost, but high-performance and cost-effective FTTH Optical receiving unit.


1.It adopts high sensitive O/E converter, wavelength range 1200~1620n

2.Optional optical AGC control function .

3.Low power consumption , low cost, high-performance and high stability.

4. Smart Plastic case
