Outdoor Two Outputs Optical Receiver

Main Applications

1.HFC

2.FTTB、FTTC

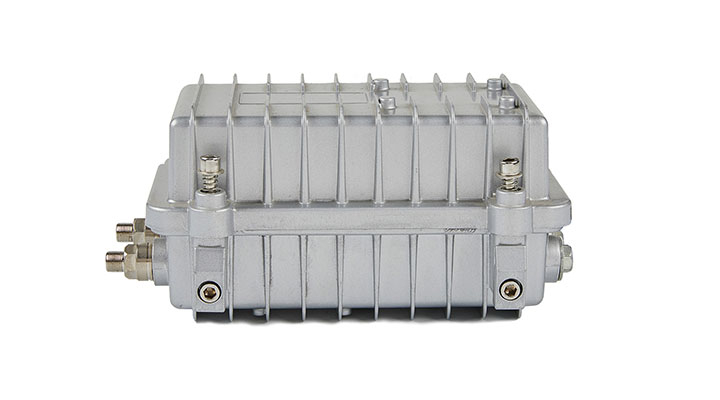

  TOR2200  outdoor optical node adopts complete aluminum die casting process, which has good performance of waterproof, heat dissipation, conductivity and corrosion resistance.

  The device adopts high performance and high efficiency O/E converter, the first stage is amplified by low-noise GaAs amplifier, and the second stage by  gain GaAS power doubler module, which ensures perfect performance values of CNR, CTB and CSO under the condition of high-level output.


1.Adopts high performance O/E converter, wavelength range 1200~1620nm.

2.Optical AGC control, when input is within range -7~+2dBm, the output level keeps unchanged.

3.High Gain, low distortion.

4.Perfect surge suppression circuit improves the ability of anti-thunder and preventing surge impact.

5.Strict reliability test, MTBF ≥ 100000 hours.

6.RF output level adjustable, slope adjustable

7.Input Power displayed by LED screen.
